Name: Portable Static Axle Load Weighing Device with Aluminum Alloy Body
Brand: Changzhou Skyerscale Co.,Limited
SKU: AS002
Price: 1,650.00 USD
Availability: InStock

Portable Static Axle Load Weighing Device with Aluminum Alloy Body

MOQ

Negociável

preço

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Nome do produto: Balança de carga por eixo portátil

Fonte de energia: 110V~250V

Recurso: Portátil/Leve/Fácil de mover

Modelo: AS002 ((2pcs) Balança de roda portátil

Material: Alumínio/aço ligado

Carga nominal: 60 toneladas

Informação básica

Lugar de origem: China

Marca: SKYERSCALE

Número do modelo: AS002

Condições de Pagamento e Envio

Detalhes da embalagem: Caixa de alumínio, caixa

Tempo de entrega: 15 dias

Habilidade da fonte: 500 PCS/M

Galeria

Portable Static Axle Load Weighing Device with Aluminum Alloy Body

Descrição de produto

Portable Static Axle Load Weighing Device with Aluminum Alloy Body

Specification:

Model	Size(A×B×C) (mm)	Capacity (each pad)		Description(Each Pad)
AS002	350×350×35	500/1000/1500Kg		4pcs SQB LoadCell,10m Cable Capacity:500/1000/1500Kg
	400×500×58	1500/2500/3000/5000Kg		4pcs SQB LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg
	450×700×58	5000/10000/15000KG		4pcs SQB LoadCell,10m Cable Capacity:5000/10000/15000Kg
	500×900×58	10000/15000/200000Kg		4pcs SQB LoadCell,10m Cable Capacity:10000/15000/200000Kg
Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T			Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h)			Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5			Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1			Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2			Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2			Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05			Safe overload(%): 120
Zero balance(%F.S): ±1			Ultimate overload(%): 150
Excitation voltage(VDC): 9~15			Net weight(kg): 45
Recommended voltage(V): 10			Defend grade: IP66

Wireless Specification
A/D conversion method	Σ-Δ 24bit
Input signal range	–19.5mV~19.5mV
Load cell excitation	DC 5V
Max. connection number of load cell	1~4
Load cell connection mode	4 wire
Operating temperature	-10 °C ~40 °C
Allowable working temperature	-40 ° C ~ 70 ° C
Wireless transmission frequency	430MHz to 470MHz
Wireless transmission distance	800 meters (In Open Place)

Description:

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

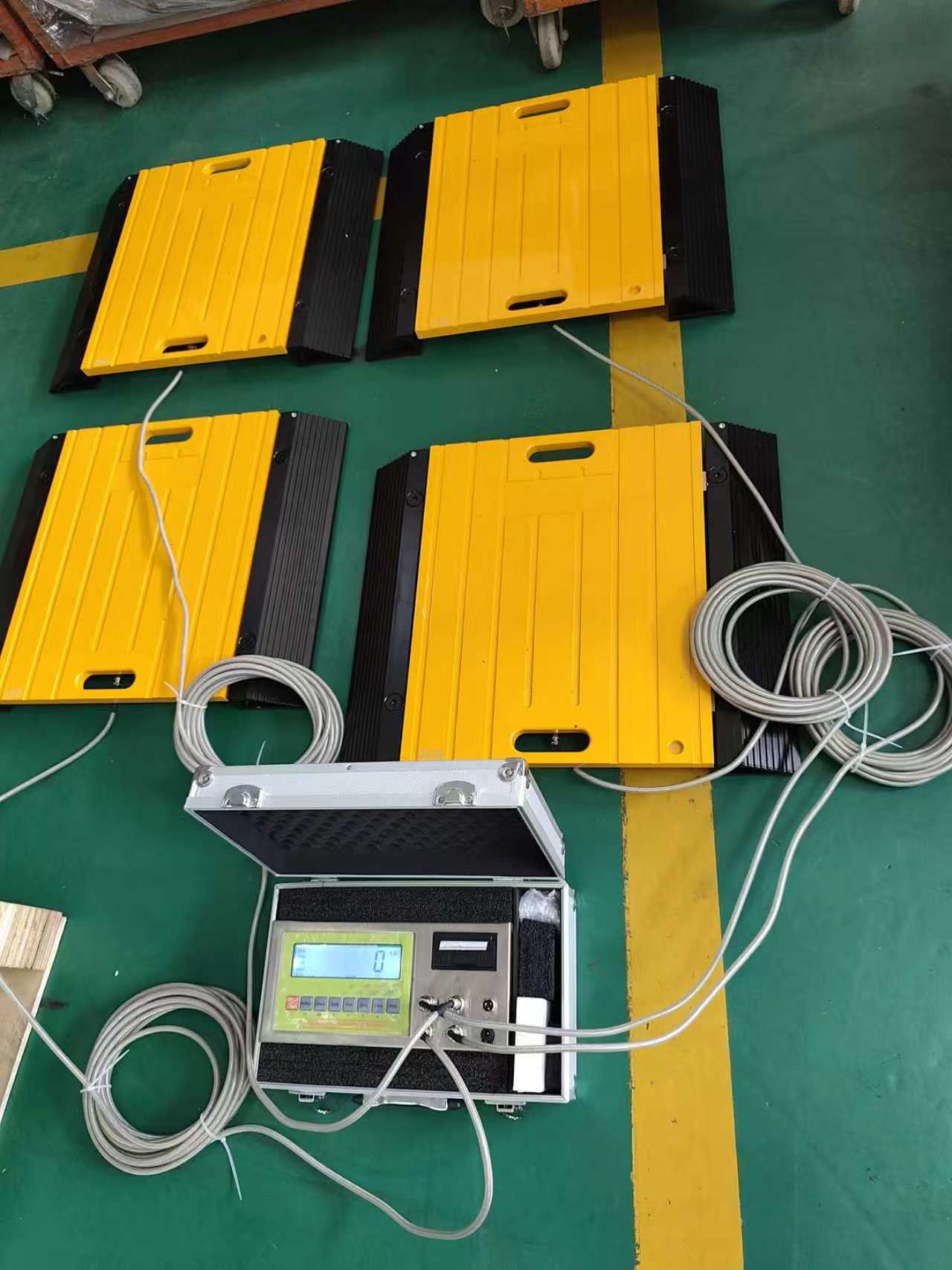

Portable Static Axle Load Weighing Device with Aluminum Alloy Body 0

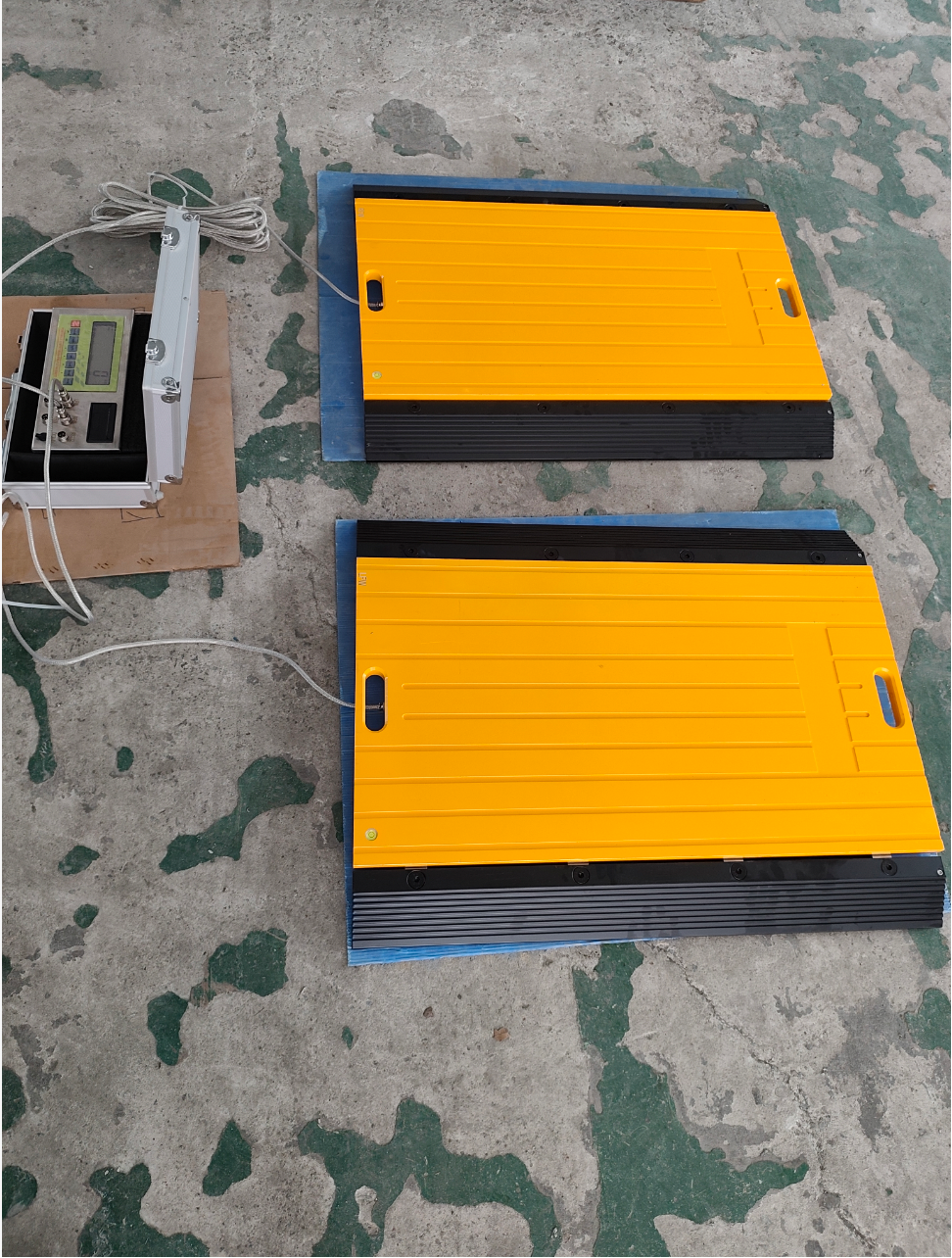

Portable Static Axle Load Weighing Device with Aluminum Alloy Body 1

Applications:

portable axle load scale is applied to check static vehicles if overload in highway, goods weighing, low accuracy or high accuracy static vehicles weighing.

Competitive Advantage:

1.We have more than 10 year experience for manufacturing truck scale, floor scale, animal scale, axle weighing scale etc. We have advanced manufacturing equipment, moreover we are the leader in weighing scale field.
2. We pay attention to scale quality, we pay attention to supervise the quality of products effectively.

3.We will supply customers installation guide and using guide after sales.
4. Full scale weight debugging and calibration
5. We can supply superior quality weighing scale with reasonable price and provide best service
